BCHL MISUMI Hex Head, Stud Type Ball Rollers
- Brand Ahcell
- Type BCHL,BCHLJ,BCHLJJ,BCHLJP

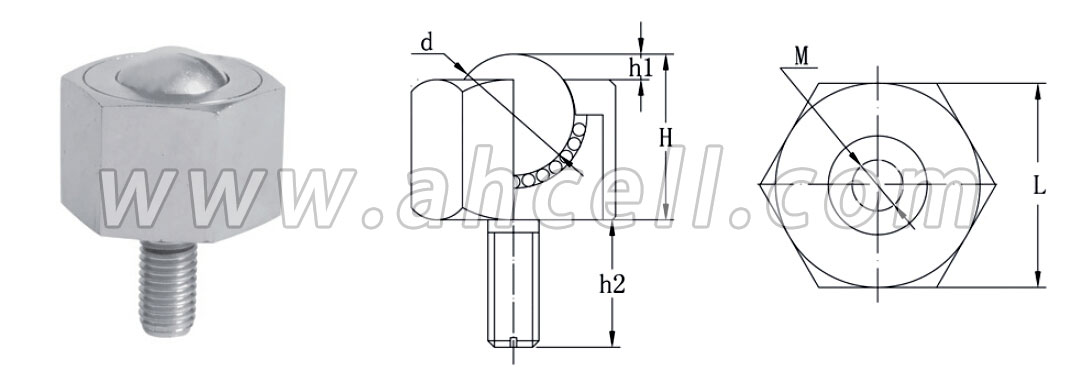

AHCELL Model Number:
|
Model |
d |
L |
H |
h1 |
h2 |
M |
Maximum Loading(kg) |
Net weight |
|
|
Suggested |
Breaking |
(kg) |
|||||||
|
NJ-12 |
11.90(15/32””) |
18 |
13.0±0.1 |
3 |
12 |
M12 |
5 |
6 |
0.025 |
|
NJ-16 |
15.88(5/8”) |
24 |
18.0±0.1 |
4 |
18 |
M12 |
10 |
15 |
0.150 |
|
NJ-25 |
25.40(1”) |
36 |
33.0±0.1 |
6 |
27 |
M12 |
60 |
80 |
0.210 |
|
NJ-30 |
30.16(1-3/16”) |
45 |
35.0±0.1 |
7 |
30 |
M14 |
150 |
200 |
0.230 |
|
NJ-38 |
38.10(1-1/2”) |
55 |
51.0±0.1 |
9 |
40 |
M16 |
250 |
300 |
0.460 |
|
NJ-45 |
45.24(1-25/32”) |
75 |
51.0±0.1 |
9 |
40 |
M16 |
350 |
400 |
1.800 |
MISUMI Model Number:
| Type | [ M ]Material | |||
| ①Main Body | ②Spacer | ③Main Ball | ④Sub Ball | |
| BCHL | 304 Stainless Steel | 304 Stainless Steel | 440C Stainless Steel(HRC55~) | 440C Stainless Steel(HRC55~) |
| BCHLJ | Polyacetal Ball | |||
| BCHLJJ | Polyacetal | - | ||
| BCHLJP | PEEK | - | PEEK | |
Specifications
| BCHP18 |
| Part Number | L | L1 | H | d | S | Allowable Load N(kgf) | ||
| Type | M | BCHL | BCHLJ | |||||
|
BCHL (Stainless Steel Ball) BCHLJ (Polyacetal Ball) |
5 | 6 | 1.1 | 5 | 4 | 8 | 12 (1.2) | 6 (0.6) |
| 6 | 8 | 1.2 | 6 | 4.76 | 10 | 14 (1.4) | 7 (0.7) | |
| 8 | 10 | 1.5 | 7 | 5.56 | 13 | 41 (4.2) | 27 (2.8) | |
| 10 | 12 | 2.5 | 10 | 8.73 | 17 | 55 (5.6) | 34 (3.5) | |
| 12 | 15 | 3.5 | 11 | 10.32 | 19 | 62 (6.3) | 55 (5.6) | |
| 16 | 20 | 5.3 | 15 | 15.87 | 24 | 343 (35) | 69 (7) | |
| 20 | 25 | 6.3 | 18 | 19.05 | 30 | 412 (42) | 82 (8.4) | |
| Part Number | L | L1 | H | d | S | E | Allowable Load N(kgf) | ||||
| Type | M | BCHLJJ | BCHLJP | BCHLJJ | BCHLJP | BCHLJJ | BCHLJP | ||||
|
BCHLJJ (Polyacetal) BCHLJP (PEEK) |
5 | 6 | 1.5 | - | 5 | 4.76 | - | 8 | 1.5 | 2 (0.2) | - |
| 6 | 8 | 1.7 | 2 | 6 | 5.56 | 6.35 | 10 | 2.5 | 4 (0.4) | 5 (0.5) | |
| 8 | 10 | 2.8 | 2.5 | 8 | 8.73 | 7.94 | 13 | 3 | 7 (0.7) | 6 (0.6) | |
| 10 | 12 | 3.5 | 3 | 10 | 10.32 | 9.53 | 17 | 3.5 | 11 (1.1) | 8 (0.8) | |
